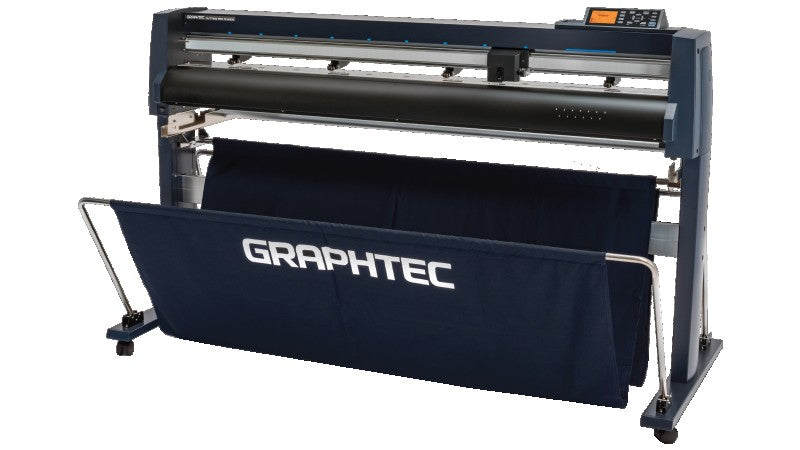

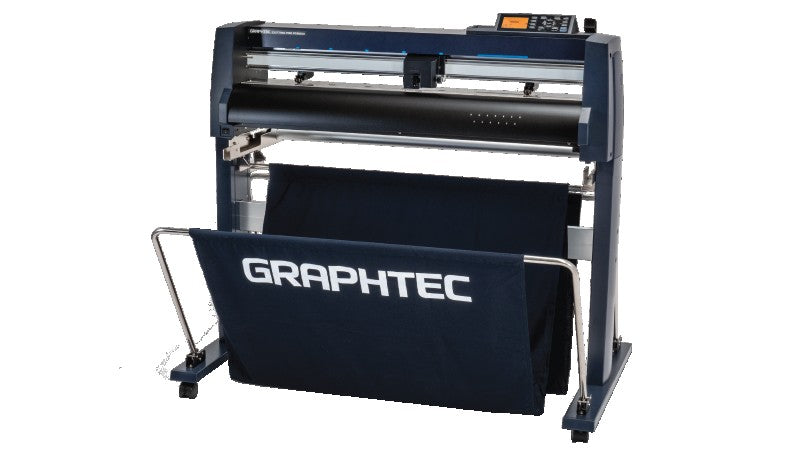

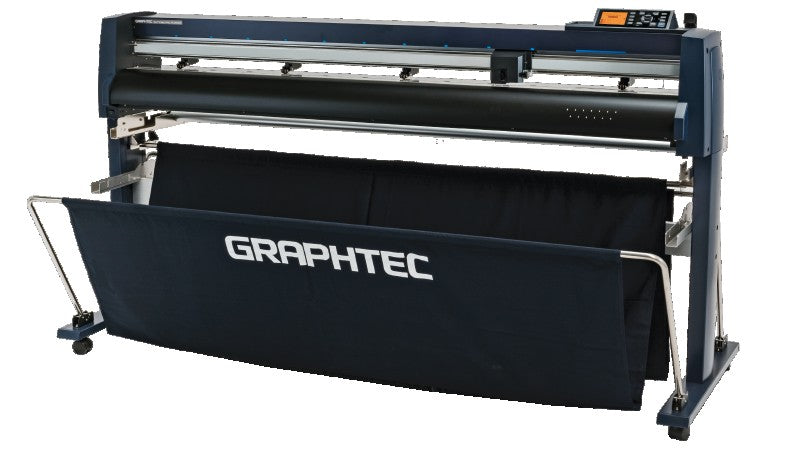

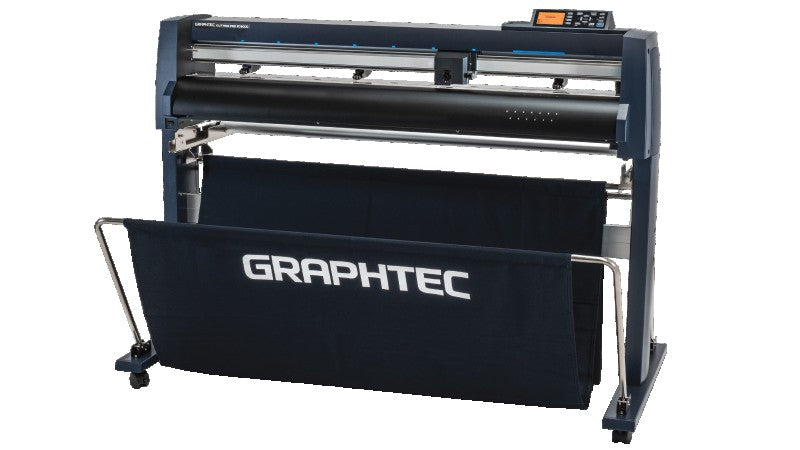

Graphtec's most advanced and versatile roll-fed cutting plotter to date, the FC9000 Series is the ultimate finishing solution for the wide-format signage, apparel, and automotive industries. It features a robust feeding system, tool head, and new ARMS sensor, which all contribute to the FC Series' class leading performance.
Unique Features
- Features a Newly Developed Feeding System and Cutting Head for Even Better Cutting Quality for Thin and Thick Materials
- Enjoy the New Datalink Barcode System, ARMS 8.0, which Streamlines Job Loading and Processing Automatically
-
Operate the Cutter Without a Computer - With the USB Online Operation Function, Cutting Data Saved to USB Ash Memory Can Be Output Directly to the Cutting Plotter
- Allow Continuous Cutting of Different Jobs with Different Data Sequentially by Detecting the Start Mark of Each New Job with the Data Link Barcode System
-
With Multiple Mark Compensation, the FC9000 Can Significantly Increase Your Productivity. Contour Cutting Is Repeated for Each Copy, Cutting Production Time for Print & Cut Applications.
-
Auto Paneling Automatically Splits Long-Length Jobs into Smaller Pages that Are Cut Sequentially to Prevent Skewing
-
Advanced Registration Mark Sensing System Delivers Precise Print & Cut Results Using Sensors to Detect Registration Marks and Perform Axis Alignment.
-
Expanded Contour Cutting Area Expands the Print & Cut Area to Include Objects Outside of the Registration Marks. Production Efficiency is Enhanced and Media Waste is Reduced.
Applications
- Window Tint Film
- High Intensity Reflective
- DTF / Heat Transfer
- Safety Shielding
- Vinyl Decals
- Print and Cut
- Paint Protection Film
- Sandblast Masking
Dimensions & Weight (includes stand and basket):
FC9000-75 w 53.54” x d 45.31” x h 48.50” 108lbs
FC9000-140 w 77.55” x d 45.31” x h 48.50” 141lbs
FC9000-160 w 87.55” x d 45.31” x h 48.50” 154lbs
Interface: Ethernet (10BASE-T/100BASE-TX) | USB 2.0 High Speed
Maximum Cutting Speed: 58.5“/s @ 45° Direction
Cutting Force: 600 gf in 48 Steps
